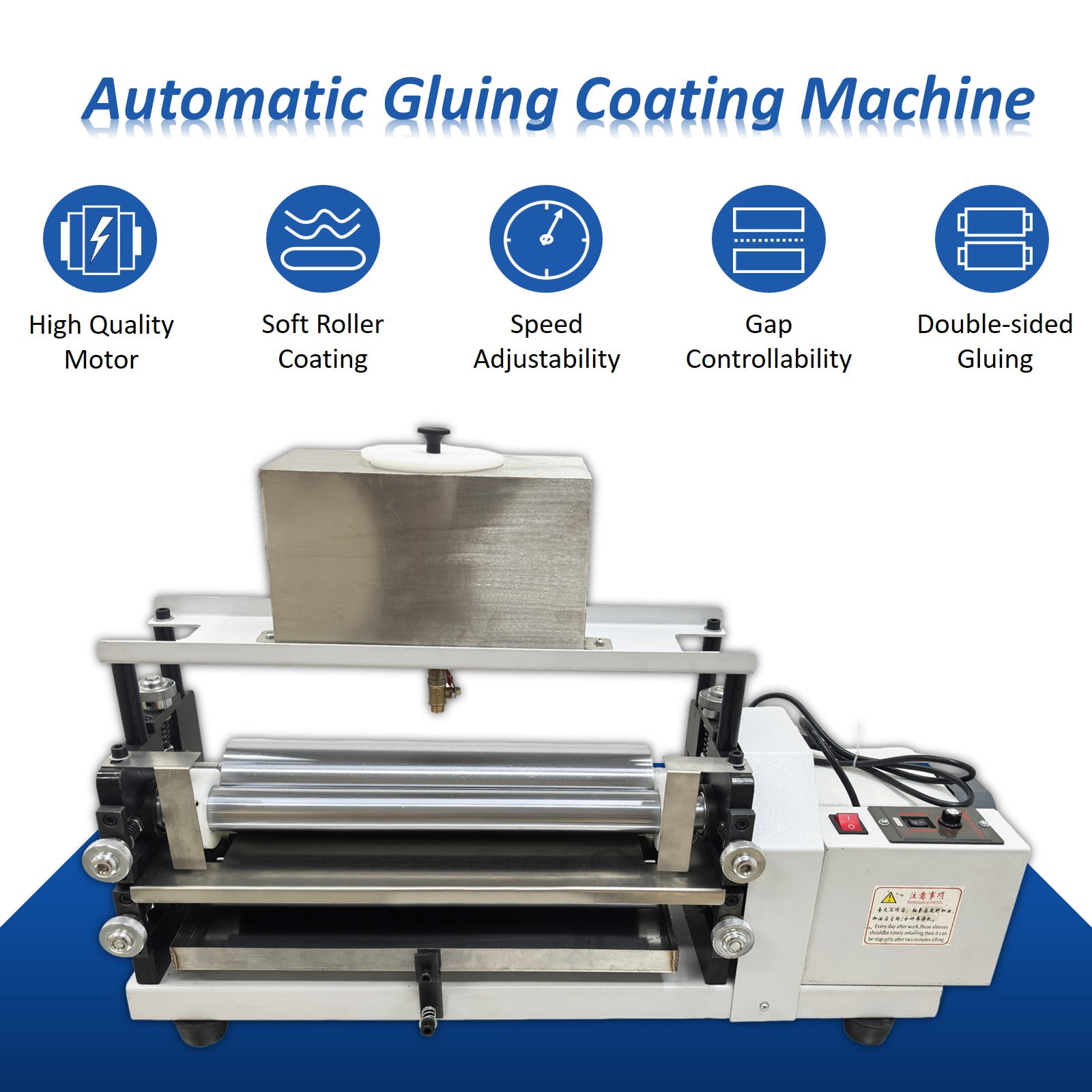

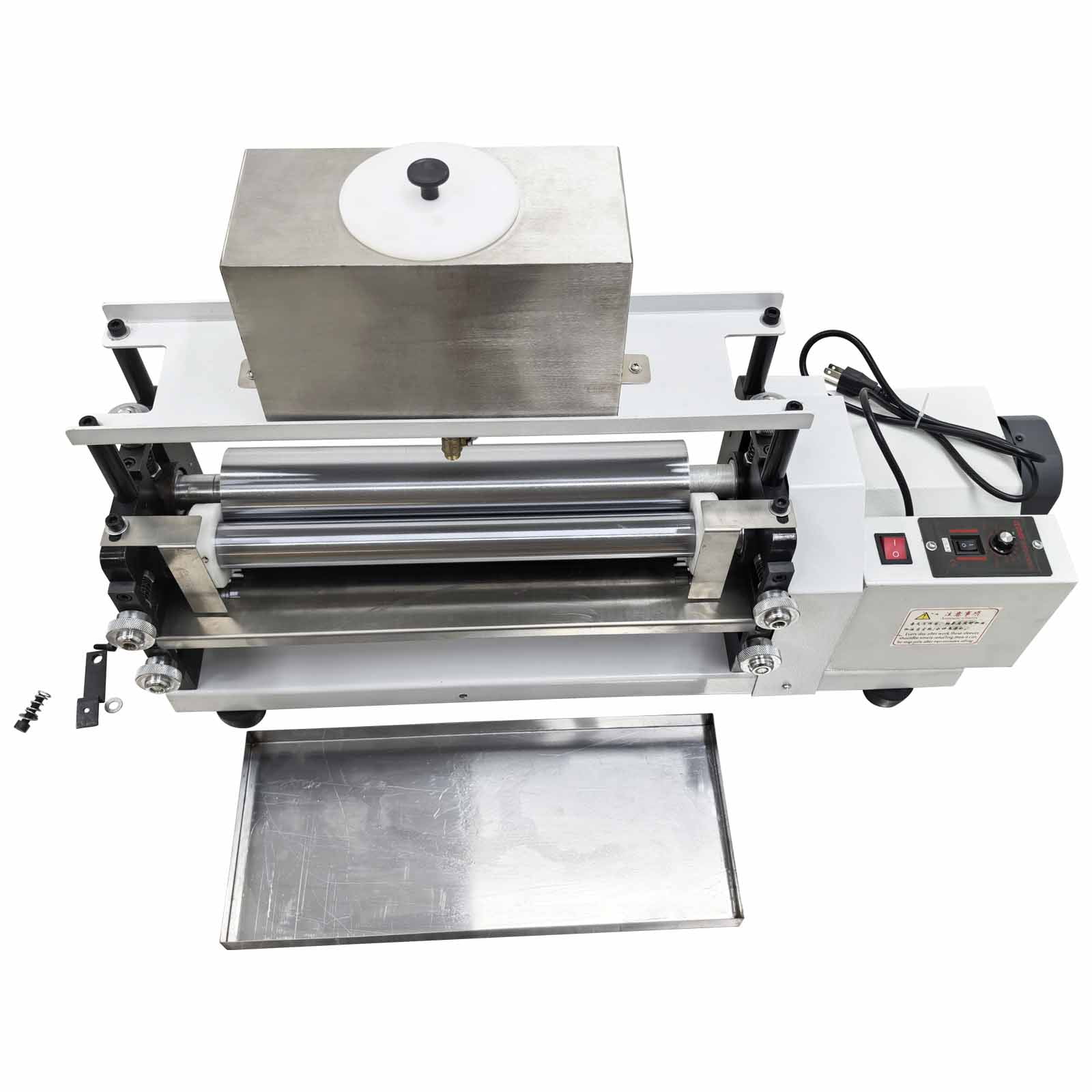

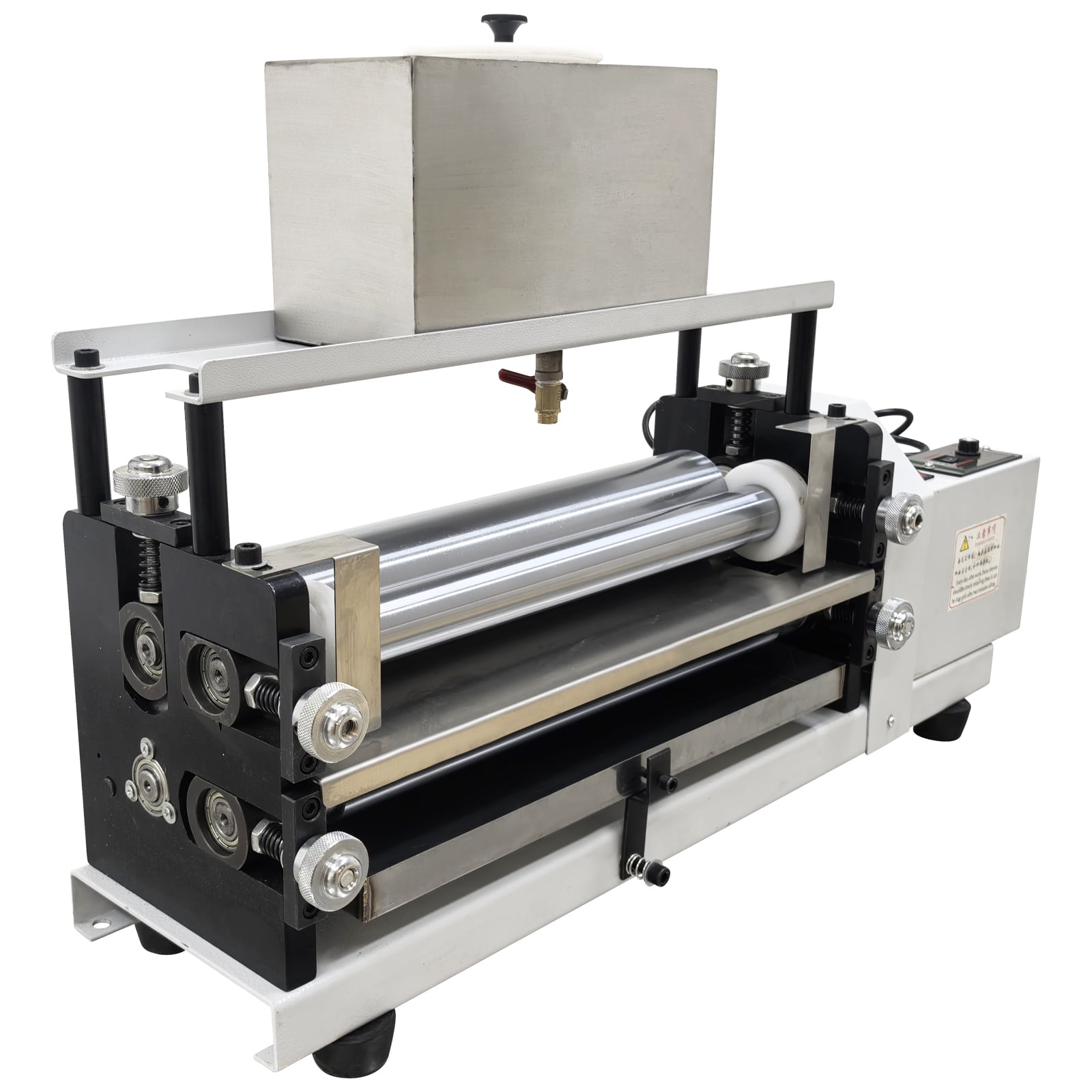

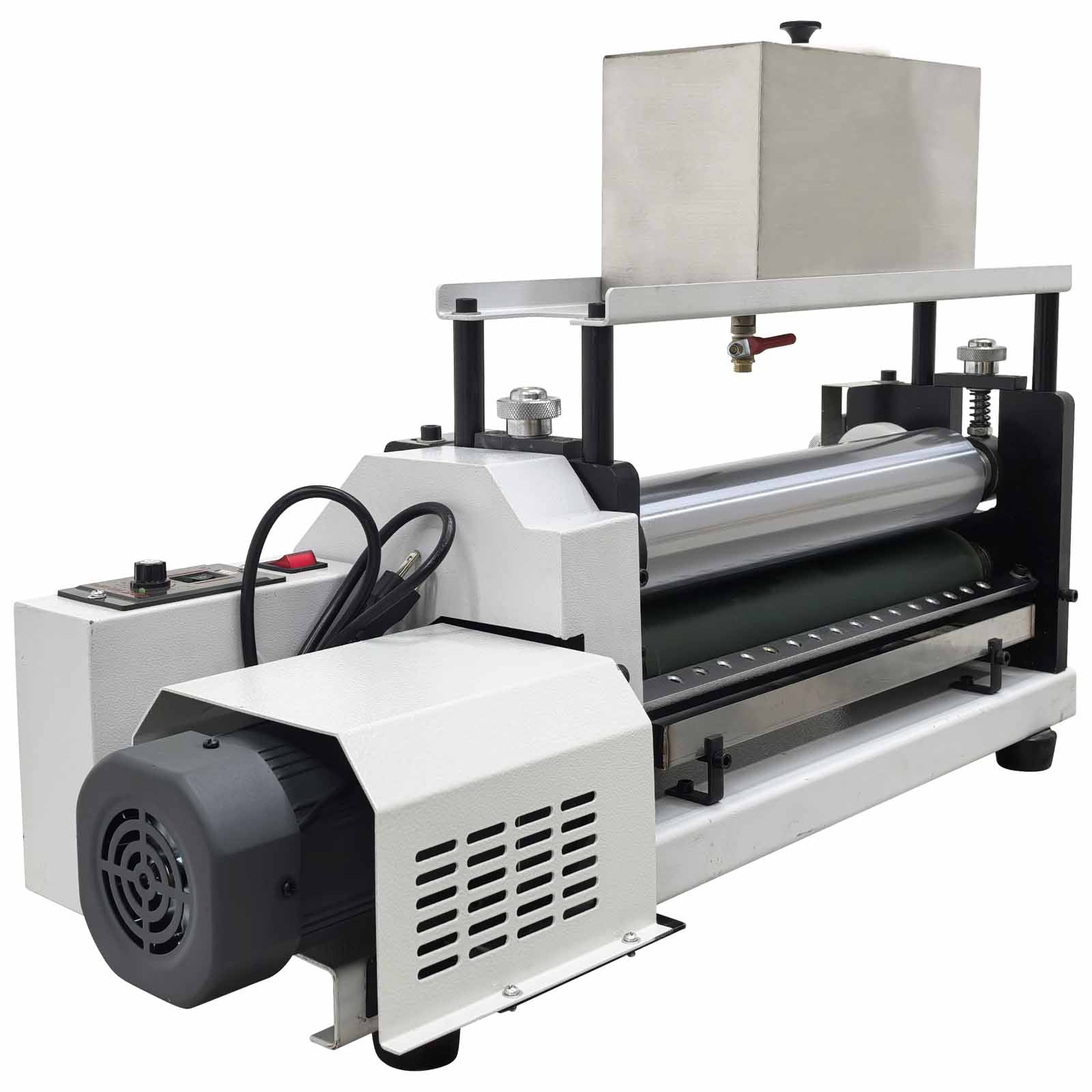

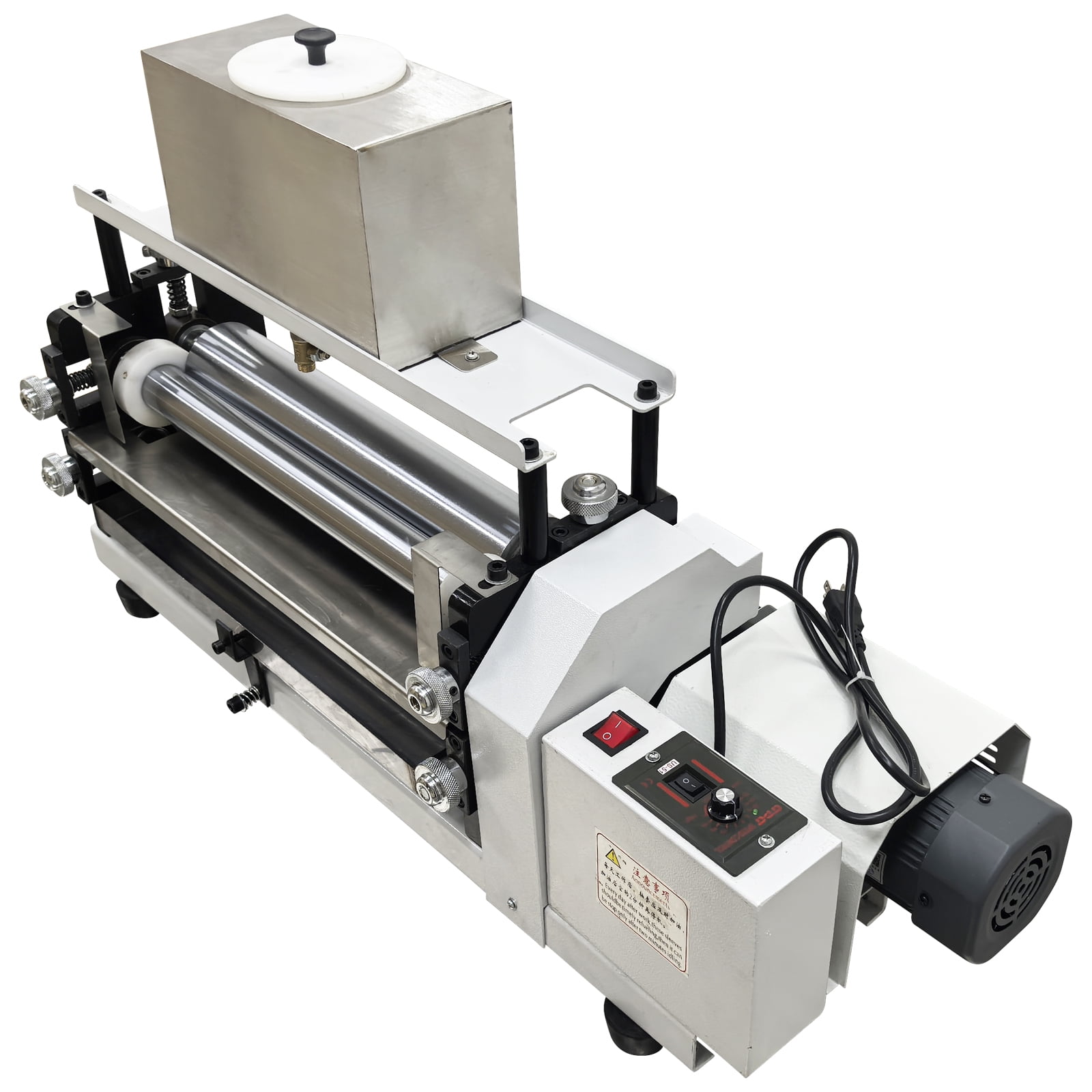

Automatic Double-Sided Gluing Machine 15.35" Soft Roller Glue Coating Machine for Paper Leather Craft 110V

Product Overview: <br>The automatic double-sided gluing machine is an efficient and professional device for coating the double sides of paper products, leather, thin workpieces and other objects with water-soluble glue evenly simultaneously and continuously. It is equipped with a high-quality soft roller to achieve more uniform gluing operation. The gluing machine has the advantages of uniform coating, gap adjustability, speed controllability, high working efficiency and so on. The automatic double-sided gluing machine can be widely applied to the industries of artware and model making, packaging, building decoration, shoe production, etc. <br> <br>Product Parameters: <br>Voltage: AC110V 60Hz <br>Power: 200W <br>Coating Speed: 0-16m/min <br>Coating Width: 15.35" (390mm) <br>Material Thickness: 0.004"-0.59" (0.1-15mm) <br>Product Size: 33.07"×11.02"×20.87" (84×28×53cm) <br>Net weight: 56kg (123.46LBS) <br> <br>Attention: <br>1. In the working process, do not touch the rollers so as to prevent hands from being crushed. <br>2. Please note that the voltage of the gluing machine is 110V 60Hz. <br>3. Use glue that meets the requirements of the machine. Avoid using glue with strong corrosiveness or inconsistent with the viscosity requirements to avoid damaging machine components. <br>4. Each time the work is completed, please wipe away the glue on the machine to prolong the service life of the machine. <br>5. After the work is completed every day, each sleeve should be lubricated timely, then idling needs to be conducted for a few minutes, and then the machine can be stopped. <br> <br>Item Number (120124): <br>1 x Automatic Double-sided Gluing Machine 110V

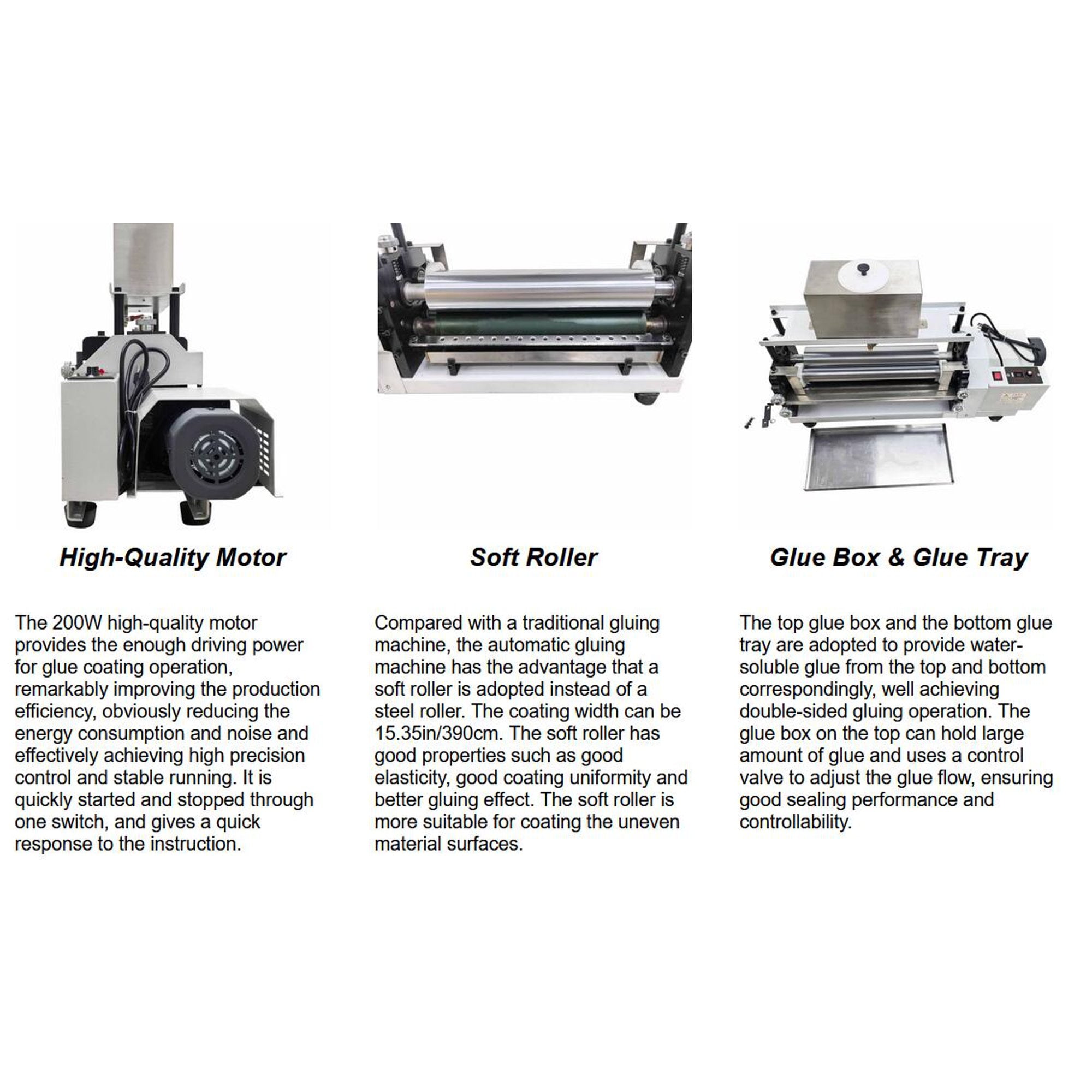

• High-Efficiency Motor & Energy-Saving Design：Equipped with a 200W high-quality motor that delivers sufficient driving power for glue coating, features low noise and energy consumption, and supports one-switch fast start/stop for precise control and stable operation, greatly boosting production efficiency.
• 15.35" Soft Roller for Superior Gluing Effect：Adopts a high-elasticity soft roller nstead of a steel roller, ensuring uniform coating and better adhesion on uneven material surfaces.

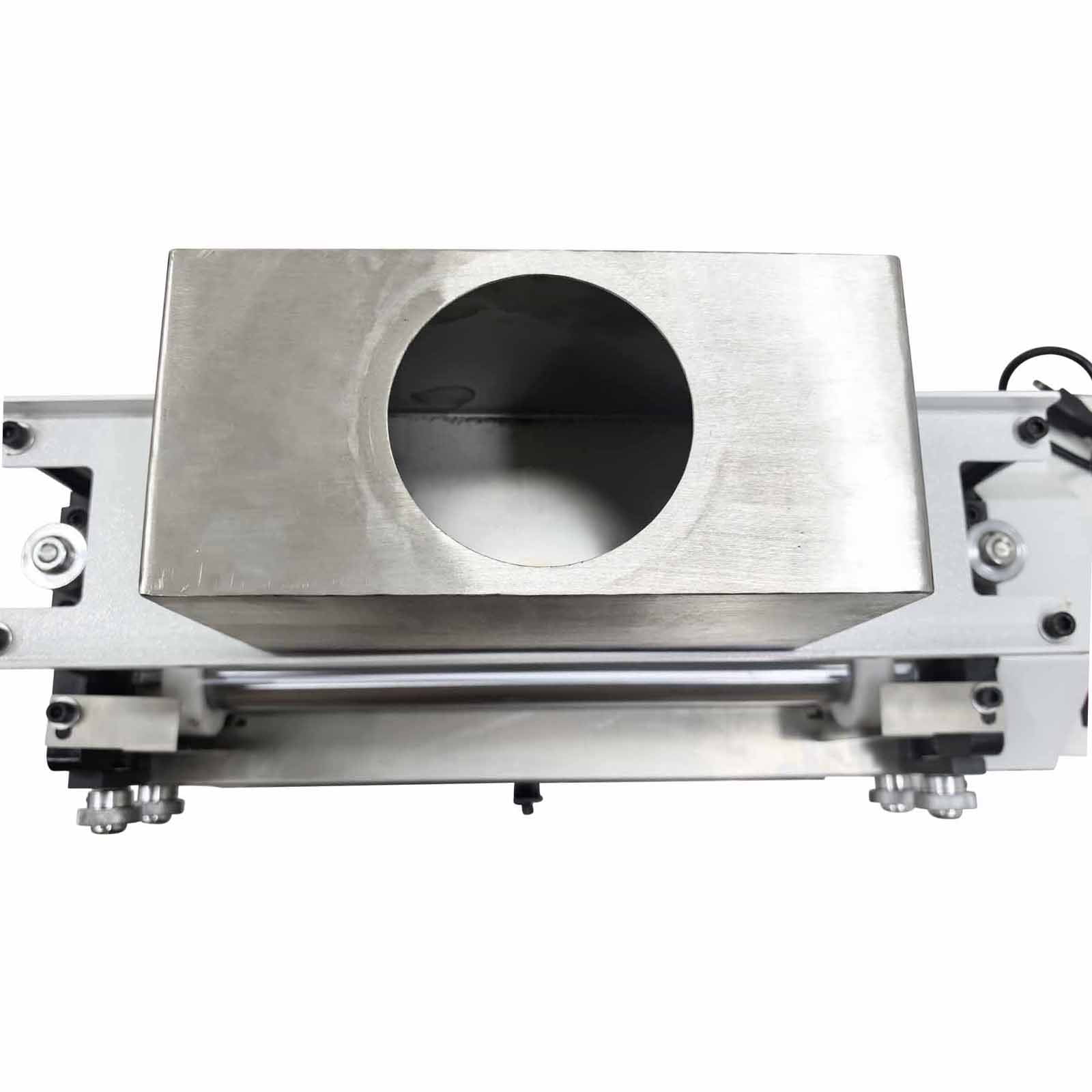

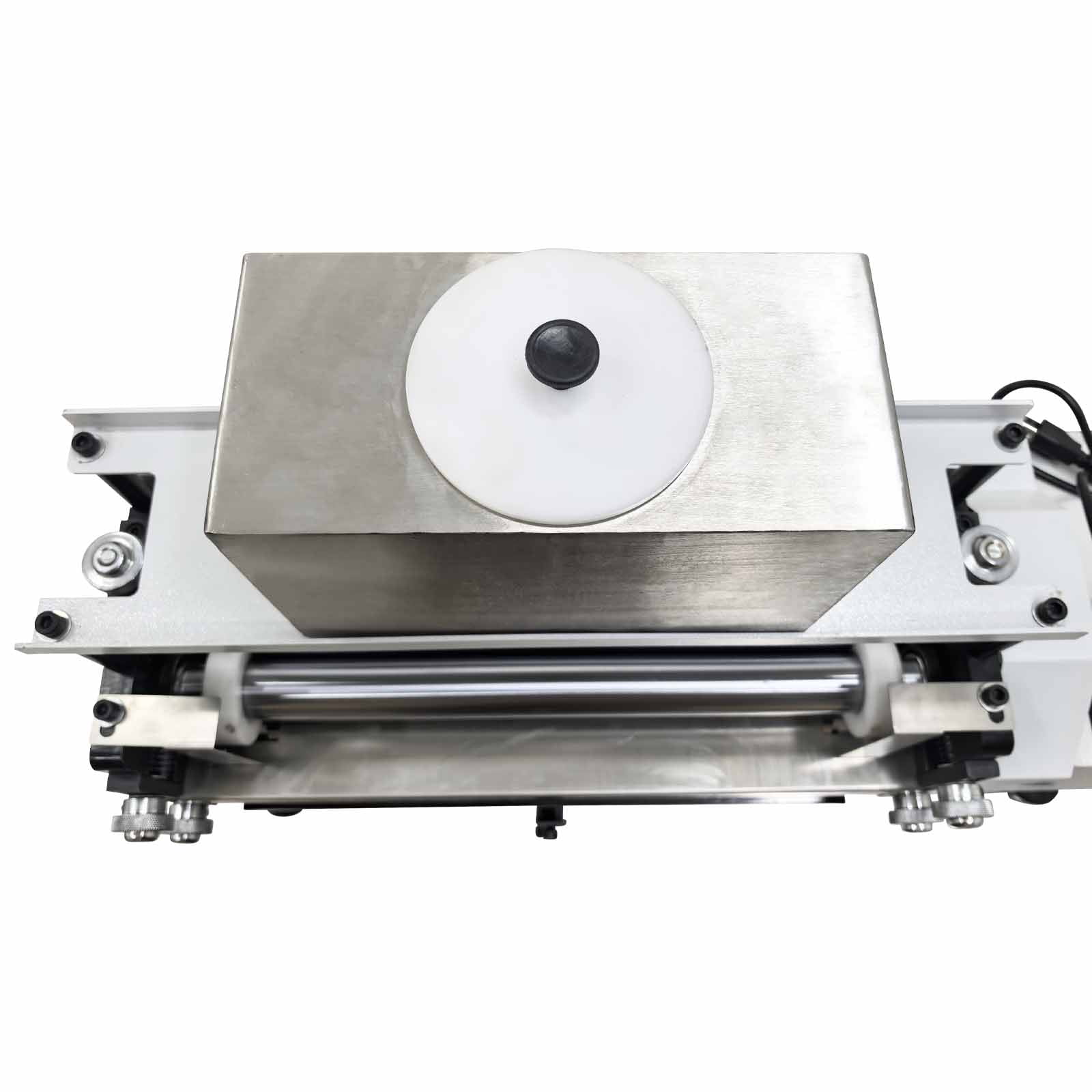

• Large-Capacity Glue System：Comes with a top glue box (large glue storage) and bottom glue tray for double-sided gluing; the glue flow is adjustable via a control valve.

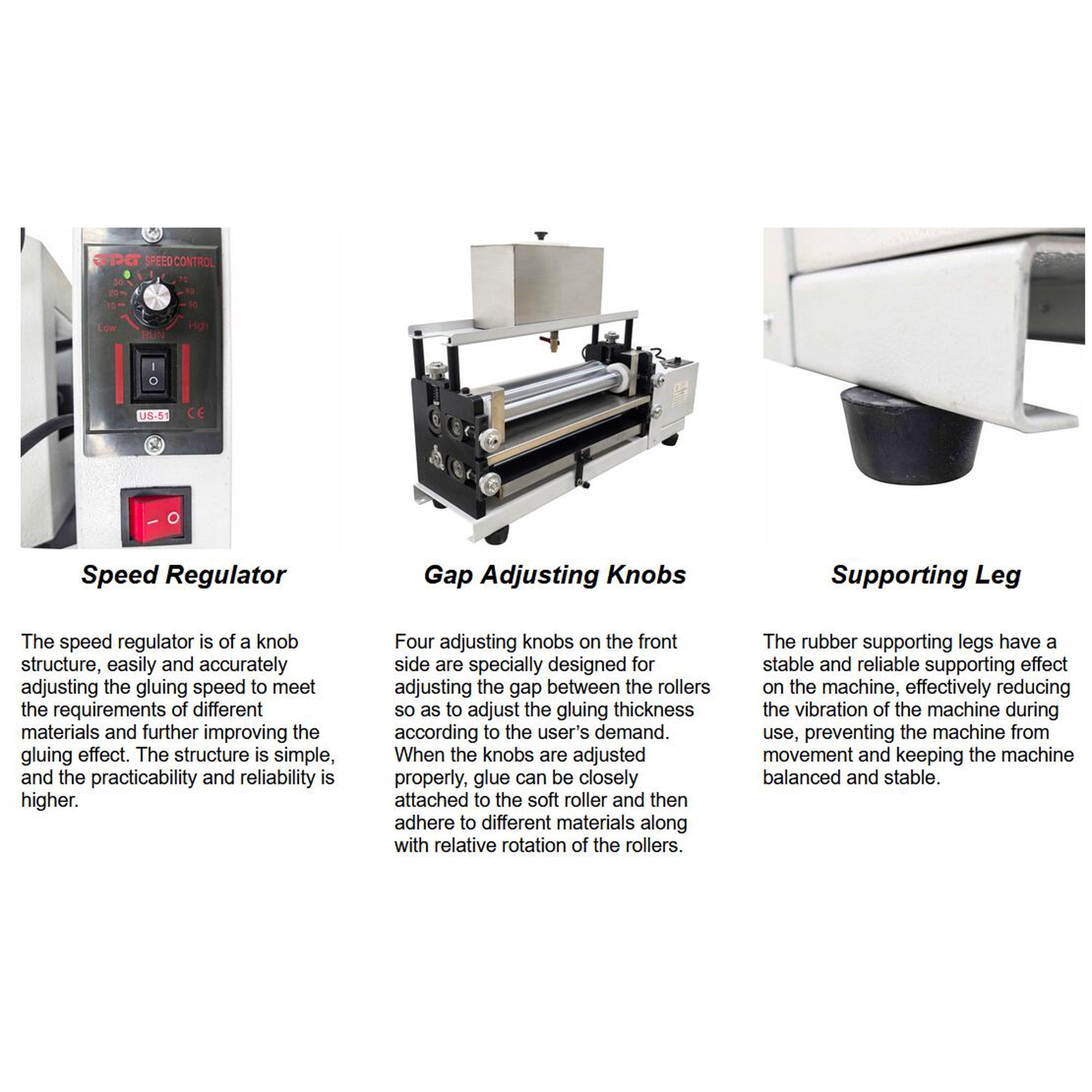

• Flexible Adjustability for Versatile Use：Features two material thickness adjusting knobs and four gluing thickness adjusting knobs to flexibly adapt to different materials (0.004"-0.59" thickness); a knob-type speed regulator allows easy adjustment of gluing speed (0-16m/min) for diverse production demands.
• Safety Protection & Stable Structure：Built with a motor safety baffle to prevent accidents and ensure operational safety; rubber supporting legs reduce machine vibration and prevent movement during use.
